Schneider Electric SA

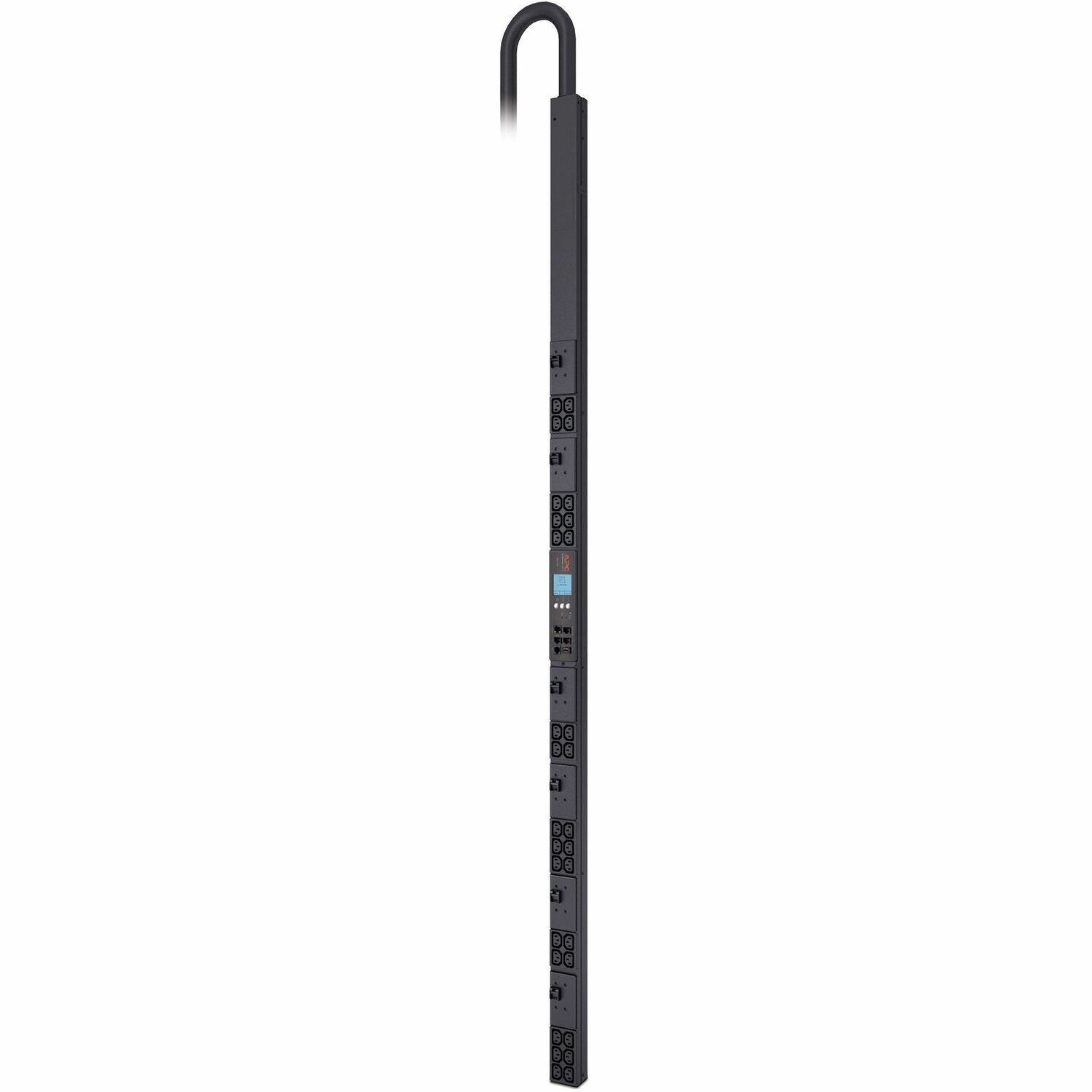

APC NetShelter Metered Rack PDU, 0U, 17.3kW, 208V, 3 phase, 60A, 30 C13 outlets
Item #: APWAP8867
Non Returnable
Special Order Item
Shippable Product
Manufacturer:
Schneider Electric SA
Catalog:
General Line (consumer) Catalog
Catalog page:
NEW
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8867
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Metered Rack
Product Name
Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13
Marketing Information
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8867 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a IEC 60309 60A 3P + PE input plug with 1 83m (6ft) cord and (30) IEC 60320 C13 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
Packaged Quantity
1 Each
Product Type
PDU
Metered - IEC 60309 60A 3P+PE - 30 x IEC 60320 C13 - 208 V - 17.20 kW - Overload Protection - 6 ft Cord Length - 0U - Vertical - Rack-mountable - Tower
- Ideal for colocation, large data centers or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- Zero U toolless installation
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8867
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Metered Rack
Product Name
Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13
Marketing Information
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8867 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a IEC 60309 60A 3P + PE input plug with 1 83m (6ft) cord and (30) IEC 60320 C13 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
Packaged Quantity
1 Each
Product Type
PDU
PDU Type
Metered
Plug/Connector Type
IEC 60309 60A 3P+PE
Receptacle Type
IEC 60320 C13
Receptacle Detail
30 x IEC 60320 C13
Protection Type
Overload Protection
Input Voltage
208 V
Output Voltage
208 V AC
Power Rating (VA)
17.20 kVA
Management
Protocols:
- SNMP
- Telnet
- Web
Color Family
Black
Product Color
Black
Mounting Orientation
Vertical
Mounting Preference
No Preference
Mount Type
Rack-mountable
Placement
Side
Form Factor
Tower
Rack Height
0U
Number of Cord/Cable
1
Cord Length
6 ft
Height
72"
Width
2.2"
Depth
2"
Weight (Approximate)
22.49 lb
For Country/Region
United States
Package Contents
Additional Information
Input Connections: IEC 309 60A 3P+PE
Certifications & Standards
cUL Listed|UL Listed|VCCI Class A
Optimized Energy Efficiency
Yes
Product Take Back Program
Yes
REACH free of SVHC
Yes
Mercury Free
Yes
Lead Free
Yes
RoHS Exemption Information
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8867_ROHS_DECLARATION&p_FileName=AP8867KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194462&lang=en-us
EU RoHS Declaration URL
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194462&lang=en-us
Environmental Profile Availability
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
End of Life Manual Availability
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
2 Year
