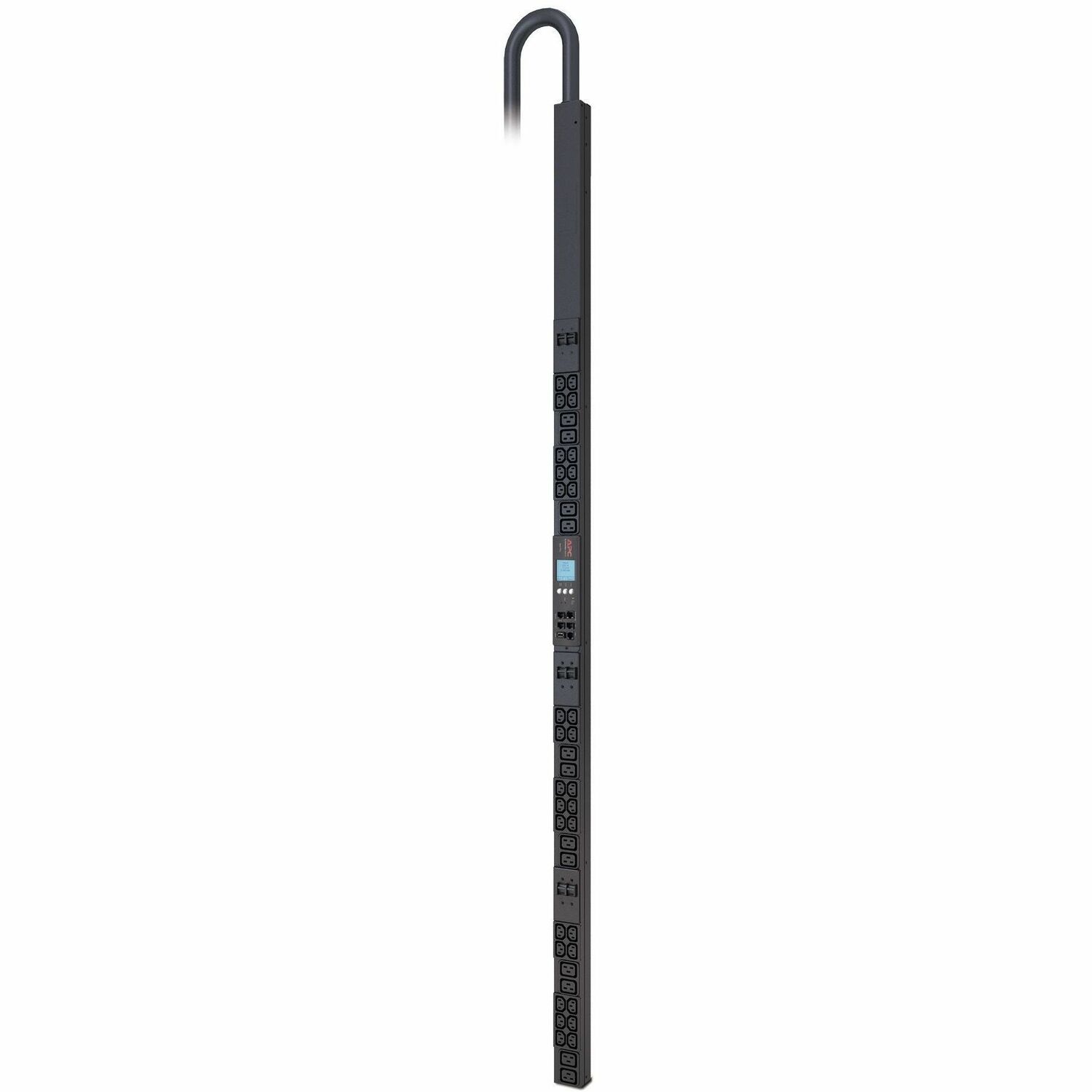

APC NetShelter Metered Rack PDU, 2G, 0U, 17.3kW, 240V, 30 C13 and 12 C19 outlets

Item #: APWAP8887
Thumbnail image 1 of 4
Thumbnail image 2 of 4
Thumbnail image 3 of 4
Thumbnail image 4 of 4
Login for Pricing
Packaging: 1 Each
Ships 6-10 Business Days
High Resolution
Hi - Res
User Manual
User Manual
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
Manufacturer:
Schneider Electric SA
Catalog:
General Line (consumer) Catalog
Catalog page:
NEW
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8887
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Metered Rack
Product Name
Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
Marketing Information

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

Packaged Quantity
1 Each
Product Type
PDU
Metered - IEC 60309 30A 3P+N+E - 30 x IEC 60320 C13, 12 x IEC 60320 C19 - 400 V - 17.30 kW - Overload Protection - 5.97 ft Cord Length - 0U - Vertical - Rack-mountable - Tower
  • Ideal for colocation, large or remote data center operators
  • Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
  • Stay on top of potential circuit overloads with user-defined alarms
  • Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
  • Zero U toolless installation
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8887
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Metered Rack
Product Name
Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
Marketing Information

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

Packaged Quantity
1 Each
Product Type
PDU
PDU Type
Metered
Plug/Connector Type
IEC 60309 30A 3P+N+E
Receptacle Type
  • IEC 60320 C13
  • IEC 60320 C19
Receptacle Detail
  • 30 x IEC 60320 C13
  • 12 x IEC 60320 C19
Protection Type
Overload Protection
Input Voltage
400 V
Output Voltage
240 V AC
Power Rating (VA)
17.30 kVA
Management

Protocols:

  • SNMP
  • Telnet
  • Web
Color Family
Black
Product Color
Black
Mounting Orientation
Vertical
Mounting Preference
No Preference
Mount Type
Rack-mountable
Placement
Side
Form Factor
Tower
Rack Height
0U
Number of Cord/Cable
1
Cord Length
5.97 ft
Height
72"
Width
2.2"
Depth
2"
Weight (Approximate)
21.16 lb
For Country/Region
United States
Package Contents
  • Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
    • Additional Information

    Input Connections: IEC 309 30A 3P+N+E

    Certifications & Standards
    cUL Listed|UL Listed|VCCI Class A
    Product Take Back Program
    No
    RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8887_ROHS_DECLARATION&p_FileName=AP8887KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL
    https://download.schneider-electric.com/files?p_Doc_Ref=AP8887_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
    EU RoHS Declaration URL
    https://download.schneider-electric.com/files?p_Doc_Ref=AP8887_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
    Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014EN
    End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
    WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Country of Origin
    India
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    2 Year
