StarTech.com

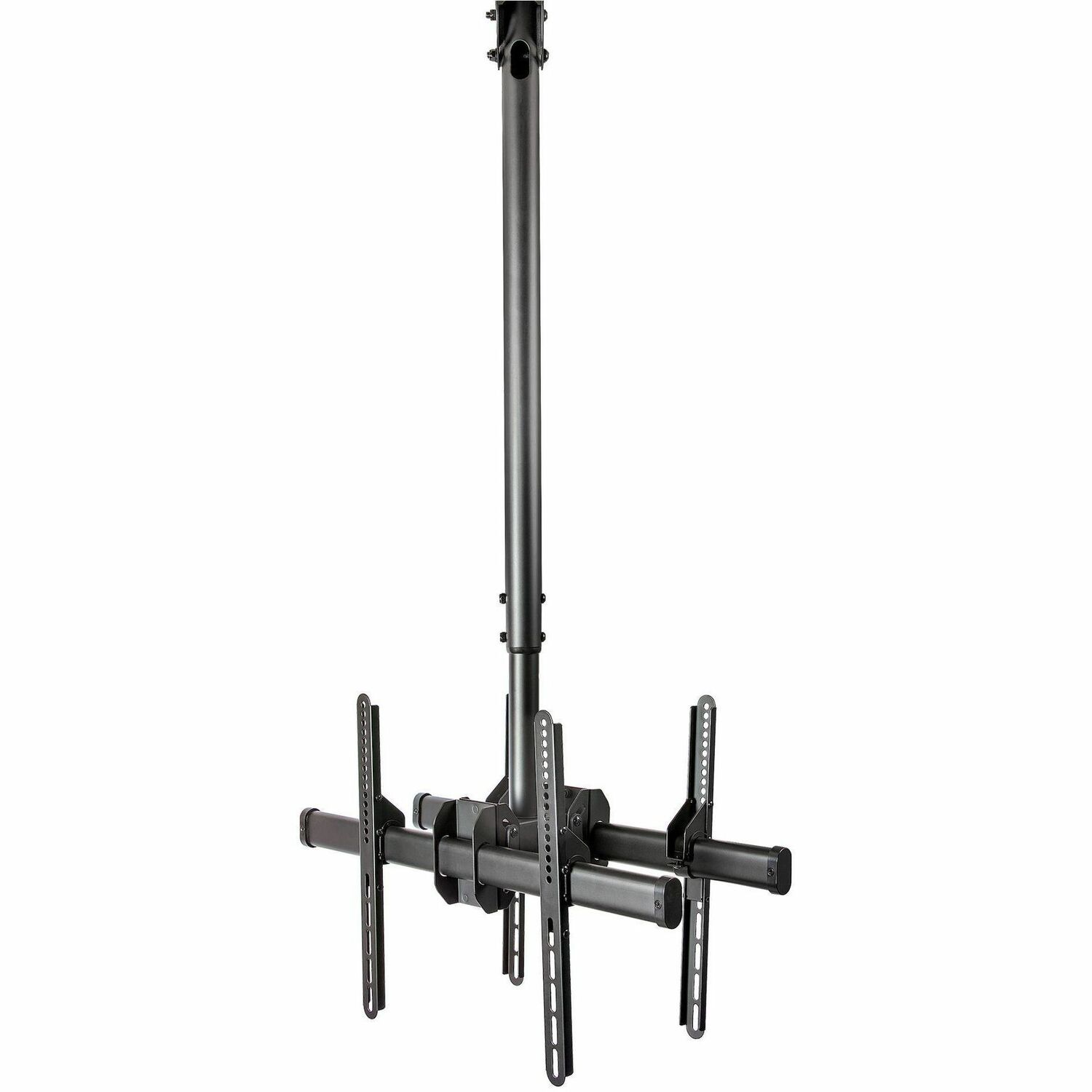

StarTech Dual TV Ceiling Mount, Back-to-Back Hanging Dual Screen VESA Pole Mount for 32"-75" TVs - Height Adjustable Telescopic Pole
Item #: STCFPCEILBTB
Non Returnable
Special Order Item
Shippable Product
Manufacturer:
StarTech.com
Catalog:
General Line (consumer) Catalog
Catalog page:
NEW
Manufacturer
StarTech.com
Manufacturer Part Number
FPCEILBTB
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
Ceiling TV Mount for Back-to-Back Displays - 3.5' to 5' Pole
Marketing Information
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content. Back-to-Back TV Mount The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display. Adjustable Height With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm). Easy Screen Adjustment For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees. Swivels to Suit Your Ceiling The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings. Simple Setup and Cable Management The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging. FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Ceiling Mount
Adjustable back-to-back dual TV ceiling mount w/ telescopic pole for large VESA mount displays/curved TVs up to 75in (110lb) per screen - Swivel/rotate/tilt - Works on angled/slanted ceilings - Incl hardware - Cable management | Hook-and-mount design
- BACK TO BACK DUAL 75" TV CEILING MOUNT: Heavy-duty VESA compatible ceiling mount supports displays incl. curved TVs up to 75" (110lb/50kg) per screen; Height adjustable pole (3.5' to 5' from ceiling)
- WIDE RANGE OF MOTION: Ceiling TV mount allows for both displays to be swiveled 360 around the telescopic pole, and individually rotated +/-3 & tilted +5/-20; TV position secured w/ provided tools
- VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for multiple screens allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
- COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- TIDY AESTHETIC: The double television ceiling mount for two large displays provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications
Manufacturer
StarTech.com
Manufacturer Part Number
FPCEILBTB
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
Ceiling TV Mount for Back-to-Back Displays - 3.5' to 5' Pole
Marketing Information
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content. Back-to-Back TV Mount The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display. Adjustable Height With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm). Easy Screen Adjustment For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees. Swivels to Suit Your Ceiling The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings. Simple Setup and Cable Management The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging. FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Ceiling Mount
Device Supported
- Flat Panel Display
- Curved Screen Display
- TV
Number of Displays Supported
2
Maximum Load Capacity
220 lb
Minimum Screen Size Supported
32"
Maximum Screen Size Supported
75"
Features
- Rotate
- Tilt
- Swivel
- Pivot
- Cable Management
- Adjustable
- Heavy Duty
- Telescoping
- 360° Swivel
- 360° Rotation
Height Adjustable
Yes
Color Family
Black
Product Color
Black
Mounting Pattern
- 200 x 200
- 300 x 300
- 400 x 200
- 400 x 400
- 600 x 400
- 200 x 300
- 200 x 400
- 300 x 200
- 400 x 300
- 600 x 200
- 600 x 300
Product Material
Steel
Height
32.90"
Width
6.50"
Length
26.80"
Weight (Approximate)
21.70 lb
Package Contents
- 1 x Upper Pole (with Ceiling Mount)
- 1 x Lower Pole
- 1 x TV Mount
- 4 x Vertical Brackets
- 2 x Horizontal Brackets
- 2 x M5 x 55 Screws
- 2 x Nuts
- 8 x M5 x 14 Screws
- 8 x M6 x 14 Screws
- 8 x M6 x 30 Screws
- 8 x M8 x 30 Screws
- 8 x M8 x 50 Screws
- 8 x Rectangular Washers
- 4 x Round Washers
- 16 x Small Spacers
- 16 x Large Spacers
- 4 x Ceiling Mounting Screws
- 4 x Concrete Anchors
- 1 x Wrench
- 1 x Hex Key
- 1 x Mounting Template
- 1 x User Manual
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
5 Year
